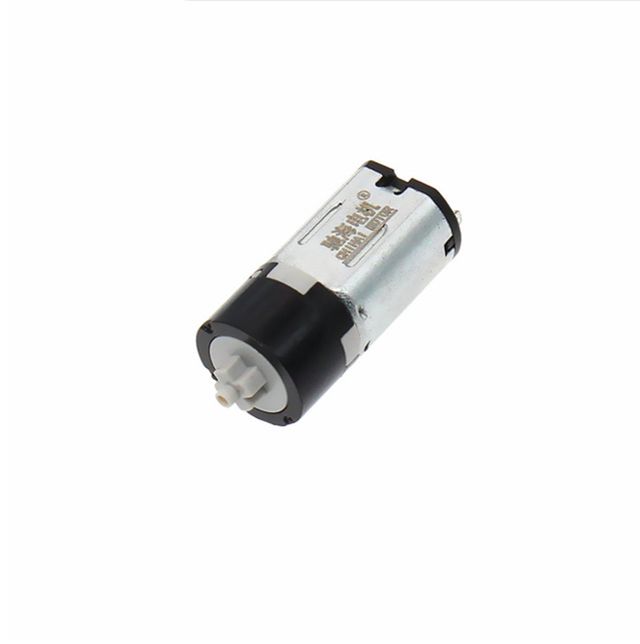

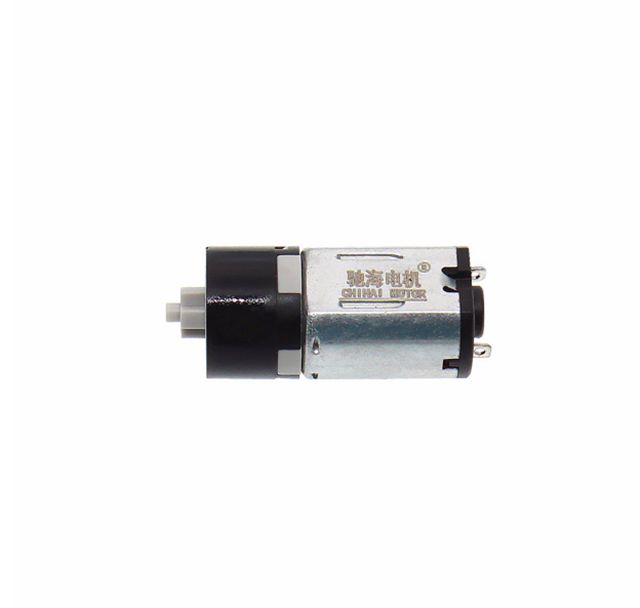

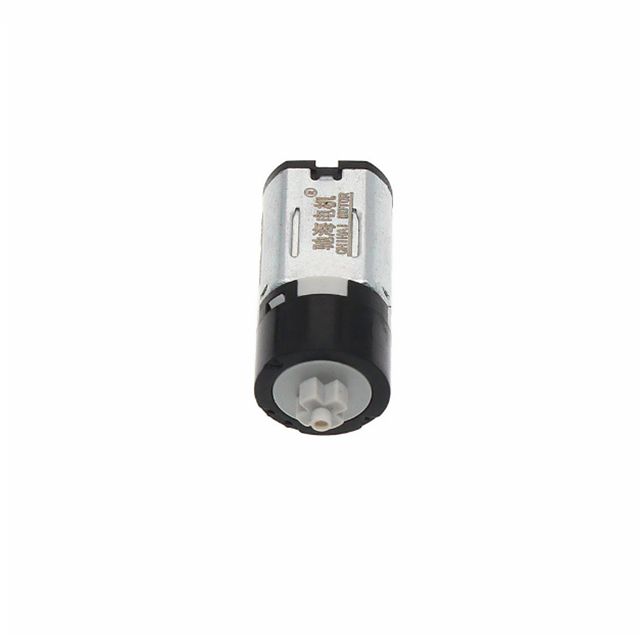

Planetarni motor s prijenosom iz plastike
Brzina bez opterećenja60rpm
Težina motora4.0g
Model: CHP-10GP-M10VA
Opis proizvoda
Koristite napon DC3.0V
Brzina bez opterećenja60rpm
Težina motora4.0g
Parametri proizvoda
MODEL | OMJER | NAPON | NO LOAD | NA RATNOM TERETU | tezga | |||||
RANGE RADA | NOMINAL | UBRZATI | TRENUTNO | UBRZATI | TRENUTNO | MOMENT | TRENUTNO | MOMENT | ||
r / min | mA | r / min |
| Kg.cm |
| Kg.cm | ||||
CHF-GM10-M10-A95-10 | 01:10 | 1,0-4,0 | 3.0 | 1550 | ≤70 | 1150 | ≤0.27 | 0.04 | ≤1.3 | ≥0.08 |
CHF-GM10-M10-A95-20 | 01:20 | 1,0-4,0 | 3.0 | 770 | ≤70 | 570 | ≤0.27 | 0,08 | ≤1.3 | ≥0.15 |
CHF-GM10-M10-A95-30 | 01:30 | 1,0-4,0 | 3.0 | 515 | ≤70 | 380 | ≤0.27 | 0.12 | ≤1.3 | ≥0.25 |
CHF-GM10-M10-A95-50 | 01:50 | 1,0-4,0 | 3.0 | 310 | ≤70 | 230 | ≤0.27 | 0.20 | ≤1.3 | ≥0.4 |
CHF-GM10-M10-A95-100 | 1: 100 | 1,0-4,0 | 3.0 | 155 | ≤70 | 120 | ≤0.27 | 0.30 | ≤1.3 | ≥0.7 |
CHF-GM10-M10-A95-250 | 1: 250 | 1,0-4,0 | 3.0 | 62 | ≤70 | 50 | ≤0.27 | 0.30 | ≤1.3 | ≥0.8 |
CHF-GM10-M10-A17-10 | 01:10 | 1,5-6,0 | 4.5 | 1750 | ≤70 | 1200 | ≤0.25 | 0.04 | ≤0.6 | ≥0.07 |
CHF-GM10-M10-A17-20 | 01:20 | 1,5-6,0 | 4.5 | 870 | ≤70 | 600 | ≤0.25 | 0,08 | ≤0.6 | ≥0.13 |
CHF-GM10-M10-A17-30 | 01:30 | 1,5-6,0 | 4.5 | 580 | ≤70 | 400 | ≤0.25 | 0.12 | ≤0.6 | ≥0.22 |
CHF-GM10-M10-A17-50 | 01:50 | 1,5-6,0 | 4.5 | 350 | ≤70 | 240 | ≤0.25 | 0.20 | ≤0.6 | ≥0.35 |
CHF-GM10-M10-A17-100 | 1: 100 | 1,5-6,0 | 4.5 | 175 | ≤70 | 120 | ≤0.25 | 0.30 | ≤0.6 | ≥0.6 |
CHF-GM10-M10-A17-250 | 1: 150 | 1,5-6,0 | 4.5 | 70 | ≤70 | 50 | ≤0.25 | 0.30 | ≤0.6 | ≥0.8 |
CHF-GM10-M10-A25-10 | 01:10 | 1,5-6,0 | 6,0 | 1900 | ≤70 | 1300 | ≤0.2 | 0.04 | ≤0.4 | ≥0.08 |
CHF-GM10-M10-A25-20 | 01:20 | 1,5-6,0 | 6,0 | 850 | ≤70 | 650 | ≤0.2 | 0,08 | ≤0.4 | ≥0.15 |
CHF-GM10-M10-A25-30 | 01:30 | 1,5-6,0 | 6,0 | 630 | ≤70 | 430 | ≤0.2 | 0.12 | ≤0.4 | ≥0.25 |
CHF-GM10-M10-A25-50 | 01:50 | 1,5-6,0 | 6,0 | 380 | ≤70 | 260 | ≤0.2 | 0.20 | ≤0.4 | ≥0.4 |
CHF-GM10-M10-A25-100 | 1: 100 | 1,5-6,0 | 6,0 | 190 | ≤70 | 130 | ≤0.2 | 0.30 | ≤0.4 | ≥0.7 |
CHF-GM10-M10-A25-250 | 1: 150 | 1,5-6,0 | 6,0 | 75 | ≤70 | 55 | ≤0.2 | 0.30 | ≤0.4 | ≥0.8 |
Pakiranje i dostava
PAKET:
Standardno izvozno kartonsko pakiranje.
VRIJEME ISPORUKE:
3-20 dana nakon potvrde narudžbe, treba odrediti detaljni datum isporuke prema
proizvodna sezona i količina narudžbe.
PAŽNJA:
Ako su potrebni posebni dokumenti carinjenja, kontaktirajte nas unaprijed radi potvrde.
Popularni tagovi: plastični zupčanik, planetarno usmjereni motor, Kina, proizvođači, tvornica, prilagođeni, veleprodaja, rinfuzno, na lageru
